V A W Meter

Range: Up to 10 Amp/ 500 Volt

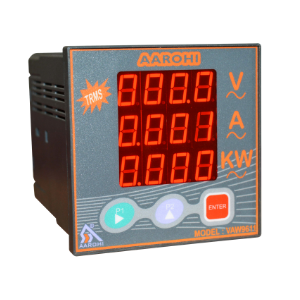

Composite VAW Meter

Composite VAW Meter

Aarohi introduces a digital calibrated Composite V A W Meter with the best accuracy & reliability. VAW Meter Having Measuring Range Up to 10 Amp/ 500 Volt.

Parameter Description
Range Up to 10 Amp/ 500 Volt
Display type 4 Nos. 0.56” seven segments 3 lines display
No. of phase For 1 & 3 phase (For AC)
Sample rate 1000 sample/ sec.
Interface  RS 485
Aux Supply Aux Supply: 230V AC ± 10%
Temperature 5°C to 40°C
Humidity 20%RH to 80%RH
Dimensions 96mm x 96mm x 110mm
Features Benefit
Microcontroller based design Provides even accuracy for the entire range
Class of accuracy: 0.5% Testing according to IS/ IEC standards is possible
Computer interface through RS-485 Data acquisition is very easy.
Easy to operate Increases work efficiency
Digitally calibrated Provide consistent accuracy
0.56” seven-segment display Visible from long distance
  • Distribution panels
  • Industrial panels.
  • Testing panels
  • Educational labs.
  • Testing of desktop power supplies, battery chargers, mini inverters
