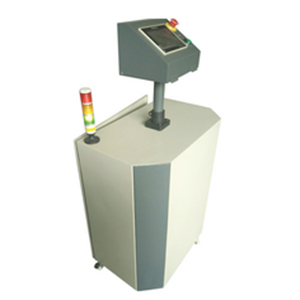

Fully Automatic Stator Testing Panel

Range : Resistance: 2000 Ohms/ IR: 1000 M ohms/ HV: 5000 V/ 250 mA​

Fully Automatic Stator Testing Panel

Fully Automatic Stator Testing Panel

Aarohi introduced a fully automatic stator testing panel. The primary purpose of this panel is to find out defects in winding before fitting of motors which will reduce time & human efforts.

This also helps to enhance productivity, Work efficiency & reduces the need for a skilled operator. More than 200 pump manufacturers across India were installed and satisfied with the performance of this system.

Parameter

Description

Range

Resistance: 2000 Ohms/ IR: 1000 M ohms/ HV: 5000 V/ 250 mA

Enclosure (Panel) type

ATM, Cupboard

Test covered

Resistance, IR test before HV, HV test, IR test after HV

Computer interface

Rs 485

Suitable Motor type

1, 2 & 3 phase motors

Data login

Automatic

Software

“ Auto tester” Client server-based software with user management for all types of the motor with real-time data monitoring & production report generation.

Indication

LED tower lamp for Pass/ Fail & test in progress status.

Output connections

Screwless terminals inside panel

Mode of operation

Automatic

Enclosure/ Panel colour

Simens gray

Test time

60 sec. max for all tests.

FEATURES

BENEFIT

Automatic data logging facility

Minimize human efforts & errors

Model/ Motor wise report generation

Provide production data analytics

Client server-based software

Anyone can access easily access  on a network

Operator friendly operation

Increases work efficiency

The aesthetic design of a panel

Create a good imprecation on visitors

Software with user management

Avoid unauthorised usage.

  • Test lab at motor manufacturer.
  • Repairing/ Service centers
  • Motor testing labs.
  • Lab. for educational institute.
