Aarohi introduces Eco model pump and motor testing panel specially designed for service / Repairing centers at most affordable prices.
|
Parameter |
Description |
|
Range |
Up to 100 Amp. |
|
Enclosure (Panel) type |
Wall mount type |
|
Parameter measured |
V, AMP, KW, Freq., RPM, Flow, Discharge pressure (Optional) |
|
Computer interface |
No computer interface |
|
Suitable Motor type |
1, 3 phase motors |
|
Motor forward/ reverse function |
Yes, By changeover switch ( Panel mounted up to 100 Amp.) |
|
Protections |
MCB/ MCCB for overload protection |
|
Output connections |
Screw less terminals inside the panel |
|
Voltage control |
Though dimmer up/ Down center return switch |
|
Pressure control |
Manually by a throttling valve |
|
Enclosure/ Panel colour |
Siemens grey |
|
Capacitor selector |
Separate switches provided for starting & running capacitor |
|
FEATURES |
BENEFIT |
|
Operator friendly operation |
Increases work efficiency |
|
Separate switches for capacitor |
Give wide range of capacitor selection |
|
Aesthetic design of panel |
Create a good Impression on visitors |
|
Wall mount tape panel |
Save floor area. |
- Pump testing.
- Repairing/ Service centers.
- Pump testing labs.
- Lab. for educational institute.
Related Products

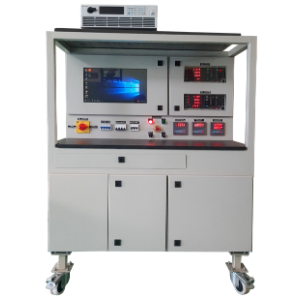

Full load / 3 point testing panel for self priming pump with pneumatic system
