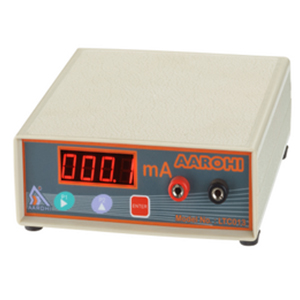

“ AAROHI” make Leakage current tester is very compact & specially designed microprocessor-based instrument to measure leakage current of the motor and Stator. The leakage current in equipment flows when an unintentional electrical connection occurs between the ground and an energized part of the conductor. The ground may be a reference point of zero voltage or the earth ground.
Ideally, the current leakge from power supply unit should flow through the ground connection and into the installations earth ground this can be easily measure with the help of leakage current tester
| Parameter | Description |
| Lekage current tester range | 200 mA |
| Display type | 4 Digit 0.56” red seven-segment |
| Least count | 000.1 mA |
| Accuracy | 0.5 % |
| Computer Interface | Rs 485 |
| Auxiliary supply | 230V AC ± 10% |
| Dimensions | 96mm x 96mm x 110mm |
| Network resistance | 2000 Ohms |
|
FEATURES |
BENEFIT |
|
Microcontroller based design |
Provides even accuracy for the entire range |
|
Class of accuracy: 0.5 |
Testing according to IS/ IEC standard is possible |
|
Computer interface through RS-485 |
Data acquisition is very easy. |
|
Easy to operate |
Increases work efficiency |
- Production line or QA testing of electric motor, submersible motor, Open well motor.
- Testing as per Indian standard.
