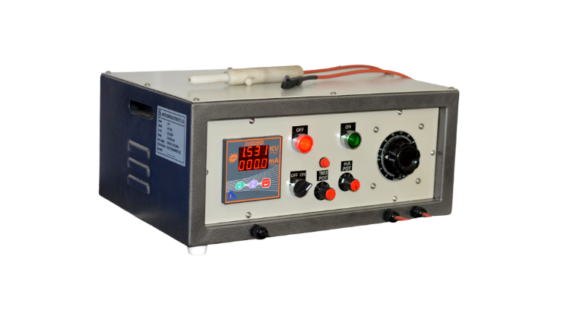

High Voltage Tester

Range : 50V to 300V (per phase) up to 300A

AAROHI make high voltage tester is specially designed to test induction & submersible motors with cutting edge technology. High Voltage Tester is manufactured as per the International set standards and regulations. This High Voltage Testers are available in AC and DC types and are used for testing HV cables after installation and repair for ensuring efficient performance. It also indicates the voltage withstands level and current leakage level of the cable during the testing period.

Parameter

Description

Range

5kV – 250mA /500mA

Display type

4 Digit 0.56” red seven segment X 2lines

Least count

0.001 kV / 1 mA

Accuracy

0.2%

Timer

30 sec.

Computer Interface

Rs 485/ 232

Auxiliary supply

230V AC ± 10%

Dimensions

360mm x 460mm x 220mm

FEATURES

BENIFIT

0.56” seven segment display

Gives grater visibility (More then 20 feet) even in brighter area.

Auto transformer provided on front side.

Voltage setting is very easy

RS 485 computer interface

Easy to communicate with PC.

mA setting pot on front side

Setting of desired mA is possible

Buzzer fitted inside

Gives awareness during HV is in on condition for safety purpose.

  • Production line or QA testing of electric motors.
  • Cable testing.
  • Winding wire testing.
  • Home appliance testing.
  • Repairing & service centres
  • Educational laboratory.
Request for

Quote

    Instant Online Request for Quote

    Related Products

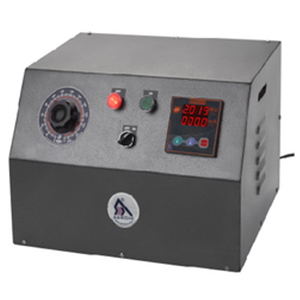

    Stator Rotation Direction Detector
