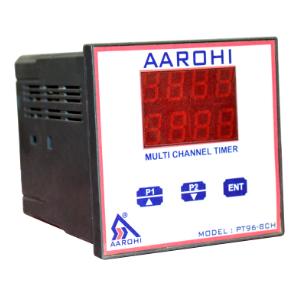

Aarohi introduces Digital Multi channel timer with the best accuracy & reliability. Having Measuring Range up to 999 sec.
| Parameter | Description |
| Range | 99 sec |
| Display type | 0.56” seven segment- 4 Digit 2 Line Display |
| Accuracy | 0.5% |
| Channel | 8 |
| Aux Supply | Aux Supply: 230V AC ± 10% |
| Temperature | 5°C to 40°C |
| Humidity | 20%RH to 80%RH |
| Dimensions | 96 mm x 96 mm x 110 mm |
| Relay output | 8 SSR Relay output. |
| FEATURES | BENEFIT |
| Micro-controller based design | Testing according to IS/ IEC standard is possible |
| Easy to operate | Increases work efficiency |
| Operate on contact-less sensors | Increase productivity & reduce physical damage |
| 0.56” seven-segment display | Visible from long distance |
- Industrial panels.
- Testing panels
- Educational labs
- Controlling of multiple machines operation
