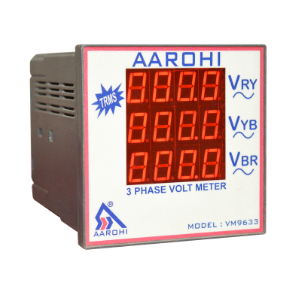

Aarohi introduces Digital AC voltmeter which is used to measure the AC voltage across any two points of electric circuit. It is a digitally calibrated AC volt meter with best in class accuracy. Having Measuring Range Up to 600V for Ac.
| Range | Up to 600V for Ac |
| Display type | 0.56” seven segment- 4 Nos. (3 Line / 4 Digit) |
| No of Phase | 3 |
| Sample rate | 1000 sample / sec. |
| Interface | RS 485 |
| Aux Supply | Aux Supply: 230V AC ± 10% |
| Temperature | 5°C to 40°C |
| Humidity | 20%RH to 80%RH |
| Dimensions | 96mm x 96mm x 130 mm |
| FEATURES | BENEFIT |
| Microcontroller based design | Provides even accuracy for the entire range |
| Class of accuracy: 0.5% | Testing according to IS/ IEC standard is possible |
| Computer interface through RS-485 | Data acquisition is very easy. |
| Easy to operate | Increases work efficiency |
| Digitally calibrated | Provide consistent accuracy |
| 0.56” seven-segment display | Visible from long distance |
- Distribution panels
- Industrial panels.
- Testing panels
- Educational labs.
