Programmable Timer

Range: 9999 Sec.

Programmable Timer

Programmable Timer

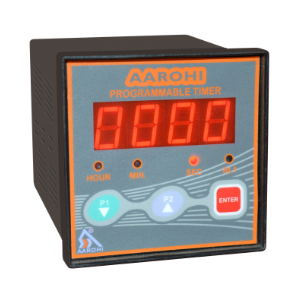

Aarohi introduces Programmable Timer with the best accuracy & reliability. Having Measuring Range upto 9999 sec.

Parameter Description
Range Up to 50 Hz
Display type 0.56” seven segment- 4 Nos.
No. of phase For 1 & 3 phase (For AC)
Sample rate 1000 sample/ sec.
Interface  RS 485/ RS 232
Aux Supply Aux Supply: 230V AC ± 10%
Temperature 5°C to 40°C
Humidity 20%RH to 80%RH
Dimensions 100mm x 100 mm x 110 mm
FEATURES BENIFIT
Microcontroller based design Provides even accuracy for entire range
Class of accuracy: 0.5 Testing according to IS/ IEC standard is possible
Computer interface through RS-485/ Rs-232 Data acquisition is very easy.
Easy to operate Increases work efficiency
Digitally calibrated Provide consistent accuracy
0.56” seven segment display Visible from long distance
  • Distribution panels
  • Industrial panels.
  • Educational labs.
Request for

Quote

    Instant Online Request for Quote
